Anji Khan Bridge

March 26, 2023

According to officials, the last deck portion of the Anji Khan bridge is expected to be completed soon.

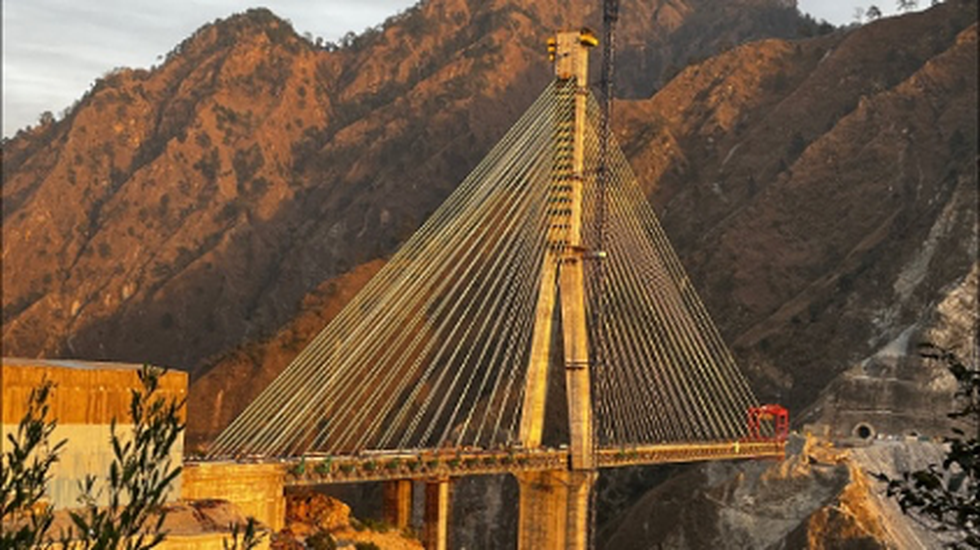

About Anji Khan Bridge:

  • It is an under-construction railway bridge in the Reasi district of Jammu and Kashmir.
  • It will be the first cable-stayed railway bridge in India.
  • It forms a part of the Udhampur Srinagar Baramulla Rail Link Project (USBRL) connecting Katra and Reasi Station on the Jammu-Baramulla line.
  • Features:
    • It is an asymmetrical cable-stayed bridge balanced on the axis of a central pylon, and it has tunnels on both ends.
    • The cable-stayed portion of the Anji bridge is 472.25 metres, while the total length of the bridge is 725.5 metres, which is divided into four parts, including an embankment.
    • The central span of the bridge is 290 metres; its total deck width will be 15 metres.
    • It stands at the height of 331 metres above the Anji river bed.
    • Trains can run up to 100km/h, and the bridge can withstand wind speeds up to 213 km/hr.
